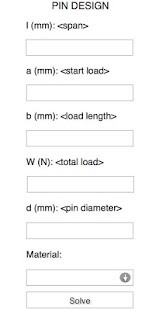

PIN DESIGN Screenshots
PIN DESIGN Description

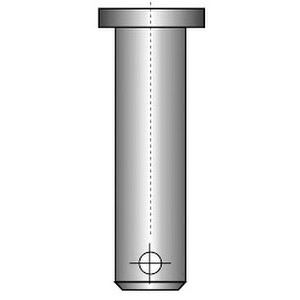

The program enables the design of steel hinge pins, subject to shear and bending, used in knuckle joints, hinge connections and other applications.The pin is dimensioned as a simple beam, uniform load partially distributed.
Disciplines applicable: mechanical, piping, structural steel and civil.
Industries: mining, steel plants, cement, capital goods and others.
Users: engineers, technicians, operators, teachers, students.
Applications: hinge connections in base of columns or in bracings of steel structures; mechanical shafts for deflectors; knuckle joints, and many others.
All sizing formulas are presented, together with the acting tensions, reactions and deflections.
Available materials: steel ASTM A-36, AISI 1045, AISI 4140.
